Overview
Glaslift med hydraulisk drejehoved
Particularly suitable for lifting tasks, installation, and transport in warehouses and areas where standard cranes have difficulty reaching.
This advanced lifting equipment combines compactness and extreme solidity to provide a versatile solution for both indoor and outdoor tasks.
Traction:2WD front-wheel drive
Max height: ~ 5,8m
Max lateral radius: 3,5m
Max payload: Pick & Carry: 650 kg
Weight: 1.175 kg
Speed: 5 km/h
Dimensions 2,07 x 0,89 x 1,52 m
Technical specifications

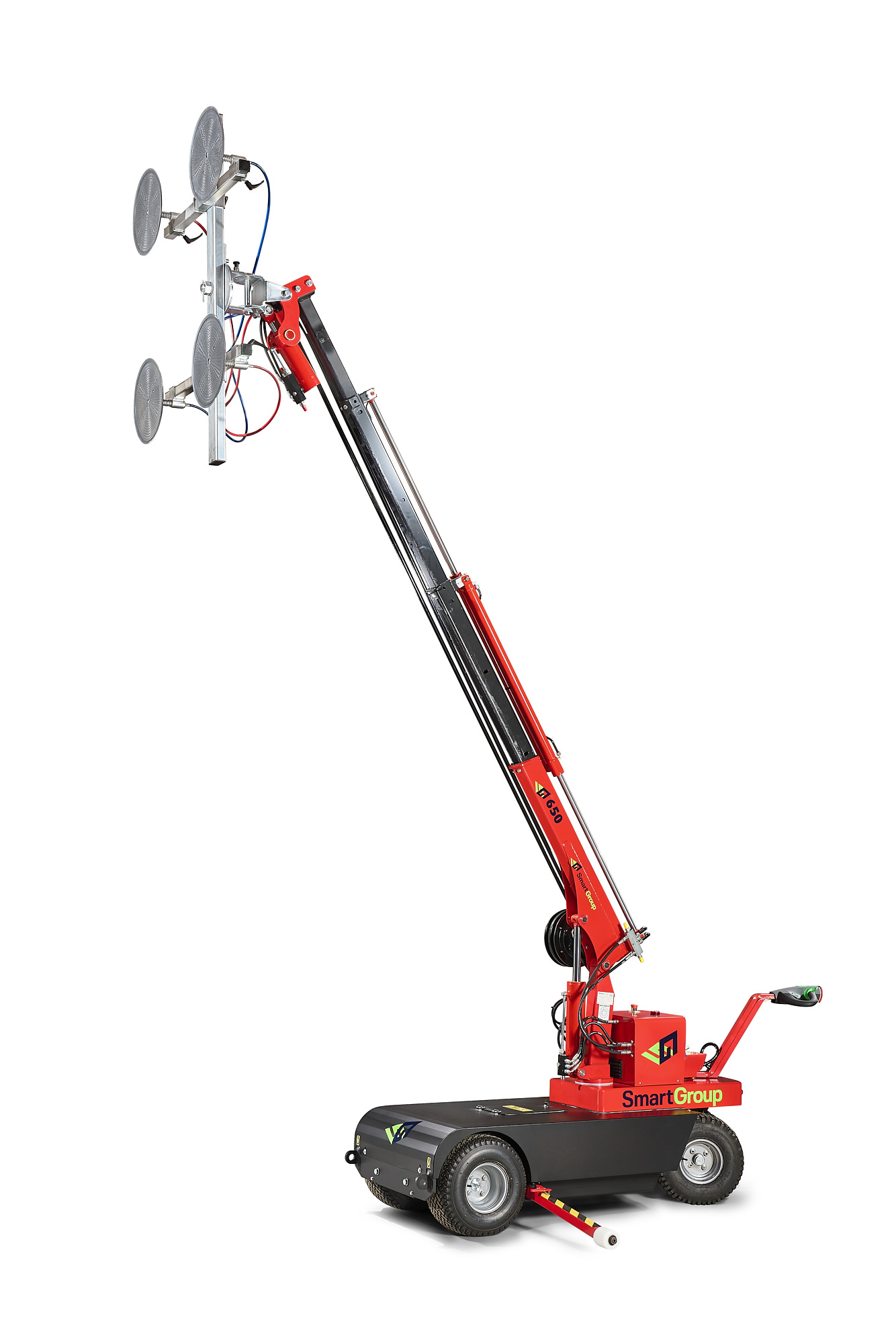

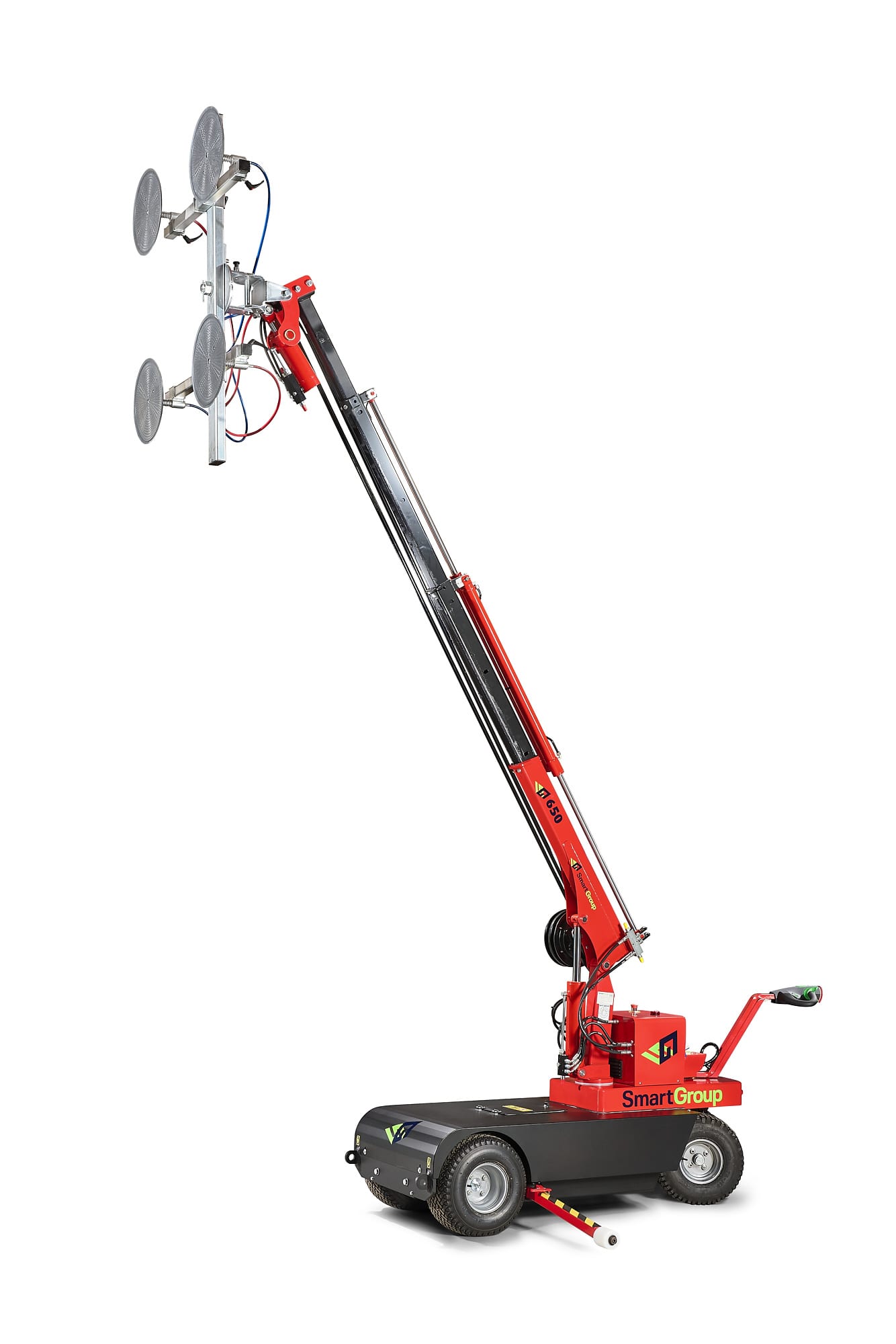

SG650 RS
The SG650RS is designed with efficiency, precision, and safety in mind. With a working height of up to 5.8 meters and a lifting capacity of 650 kg, this vacuum lifter solution is built to handle demanding glass and installation tasks with stability and millimeter precision.
See all benefits
- Powerful, hydraulic glass robot with electric drive
- Load capacity up to 650 kg 'Pick & Carry'!
- Reach: 5.8 m high; 3.5 m in front of the wheels
- The highest safety measures in the industry
- Proportional control with potentiometer
- Monitoring with load cells
- Automatic speed reduction when the load limit is reached
- Weight display via LED
- Arm with 3 hydraulic telescopic segments
- Radio remote control (optional)
- Incredibly easy operation with joystick/control arm
- Powerful electric motor with front-wheel drive
- Industry's lowest load center, meaning more stability
- Special tires, designed for difficult terrain
- Approved for indoor and outdoor use
- CE approved
Lifting capacity
The SG650RS can lift and transport glass and facade elements up to 650 kg – even while in motion. It is designed for professionals in the glass industry, assembly sector, and facade construction, where heavy elements require safe and stable handling. Hydraulic rotating head – top-class precision The new hydraulic rotating head ensures stable and stepless rotation of glass and windows – controlled via the remote. This technology makes it easy to adjust and position elements with high precision and flexibility.
Safety
SG650RS er udstyret med en række indbyggede sikkerhedsfunktioner for at sikre en stabil og kontrolleret arbejdsproces:
✔ Automatisk hastighedsreduktion, når belastningsgrænsen er nået
✔ Overvågning via vejeceller for præcis belastningskontrol
✔ Lavt tyngdepunkt for maksimal stabilitet
Working height
With a lifting height of up to 5.8 meters and a reach of 3.5 meters in front of the wheels, the SG650RS enables work on even the most challenging projects.
Hydraulics
The advanced hydraulic control allows for even the most precise movements with millimeter accuracy. All movements can be controlled proportionally, giving the user full control over the lift – both at high speed and during slow fine adjustments.
Let at manøvrere – også i vanskeligt terræn
The SG650RS is equipped with a powerful electric motor, front-wheel drive, and special tires, ensuring high maneuverability and stability, even on uneven surfaces.

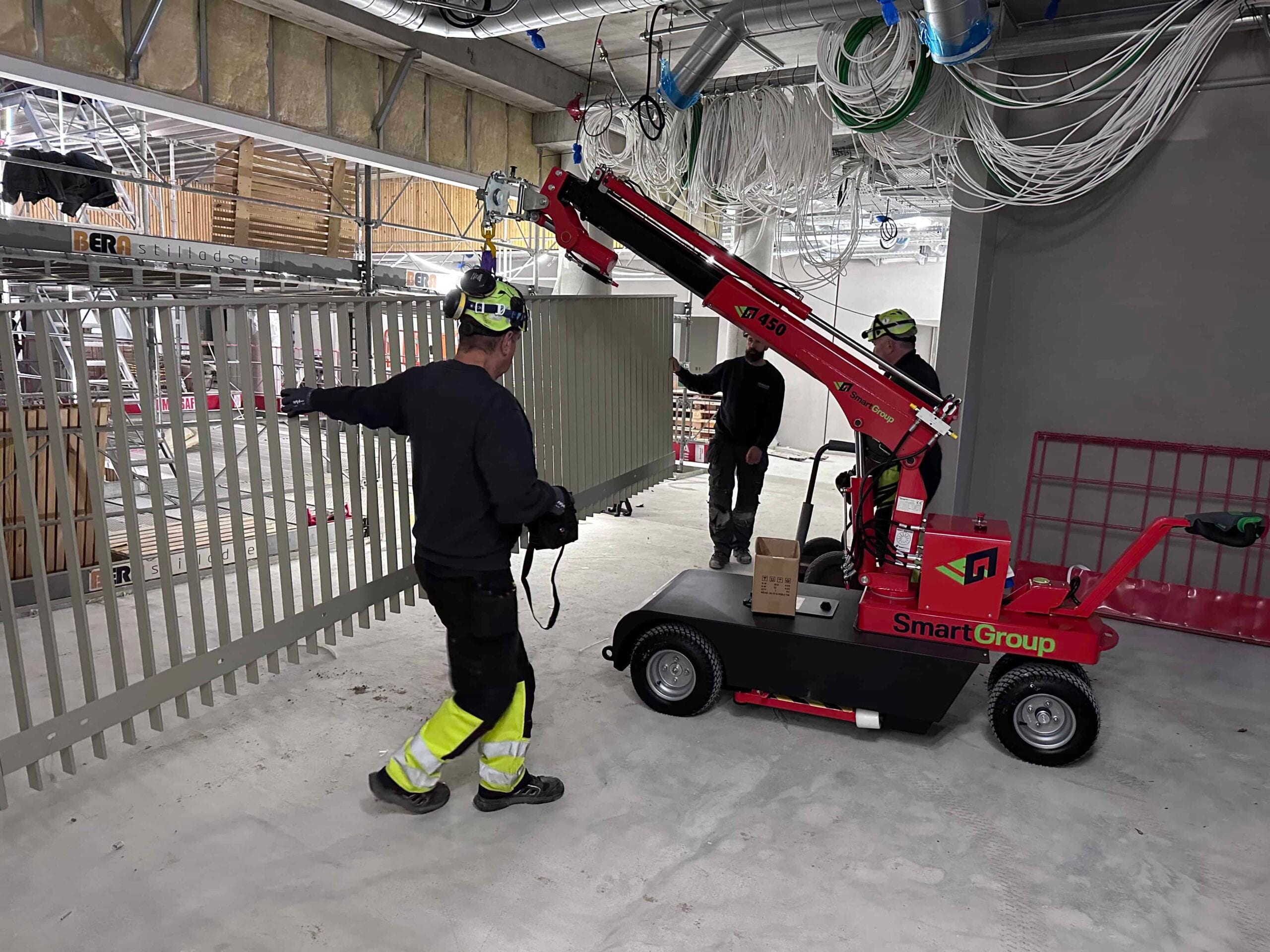

Watch our SG 650 RS in action
Receive offer
Get a non-binding offer and experience a new standard for efficiency and safety.
