Overview
Particularly suitable for lifting tasks, installation, and transport in warehouses and areas where standard cranes have difficulty reaching.
This advanced lifting equipment combines compactness and extreme solidity to provide a versatile solution for both indoor and outdoor tasks.
Traction:2WD front-wheel drive
Max height: ~ 5,8m
Max lateral radius: 3,5m
Max payload: Pick & Carry: 650 kg
Weight: 1.175 kg
Speed: 5 km/h
Dimensions 2,07 x 0,89 x 1,52 m
Technical specifications

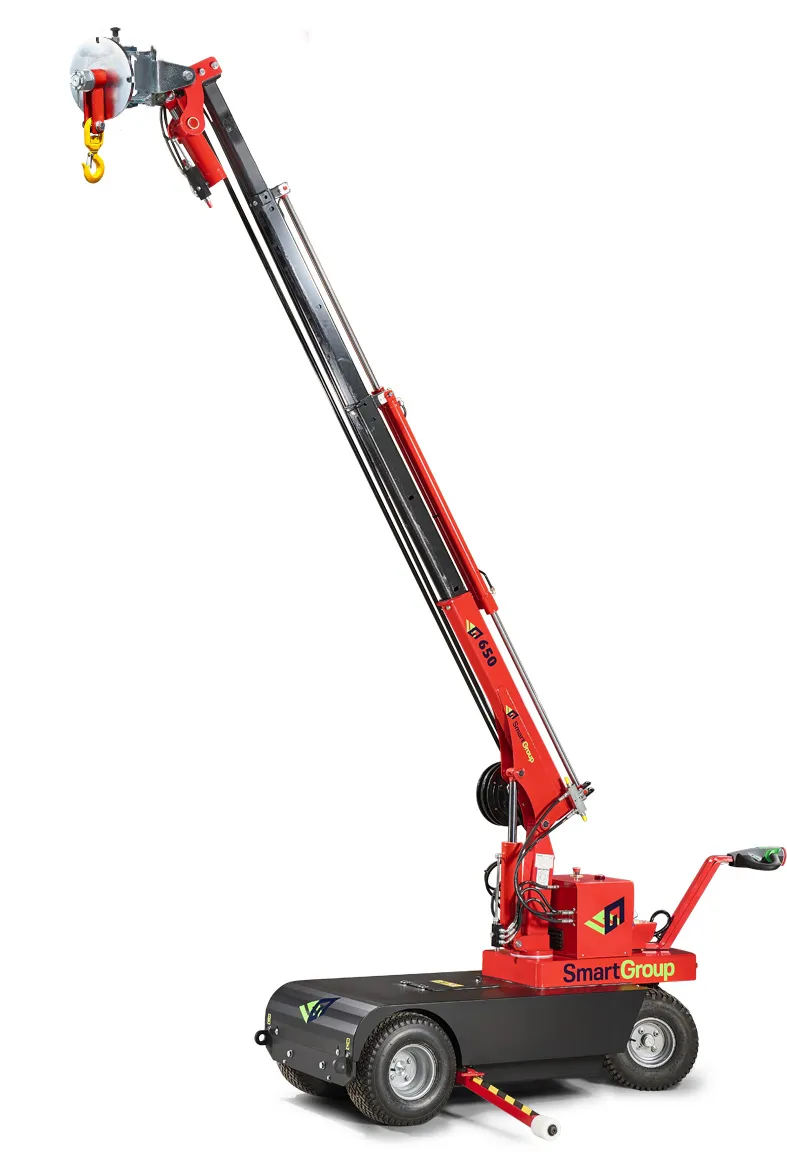

SG650 PC
Designed to provide a compact and extremely robust solution for lifting work, transport, and installation. With an impressive working height of up to 5.8 meters and a lifting capacity of 650 kg, this Pick & Carry is the ideal lifting method that combines mobility and power.
See all benefits
- Powerful, hydraulic glass robot with electric drive
- Load capacity up to 650 kg 'Pick & Carry'!
- Reach: 5.8 m high; 3.5 m in front of the wheels
- The highest safety measures in the industry
- Proportional control with potentiometer
- Monitoring with load cells
- Automatic speed reduction when the load limit is reached
- Weight display via LED
- Arm with 3 hydraulic telescopic segments
- Radio remote control (optional)
- Incredibly easy operation with joystick/control arm
- Powerful electric motor with front-wheel drive
- Industry's lowest load center, meaning more stability
- Special tires, designed for difficult terrain
- Approved for indoor and outdoor use
- CE approved

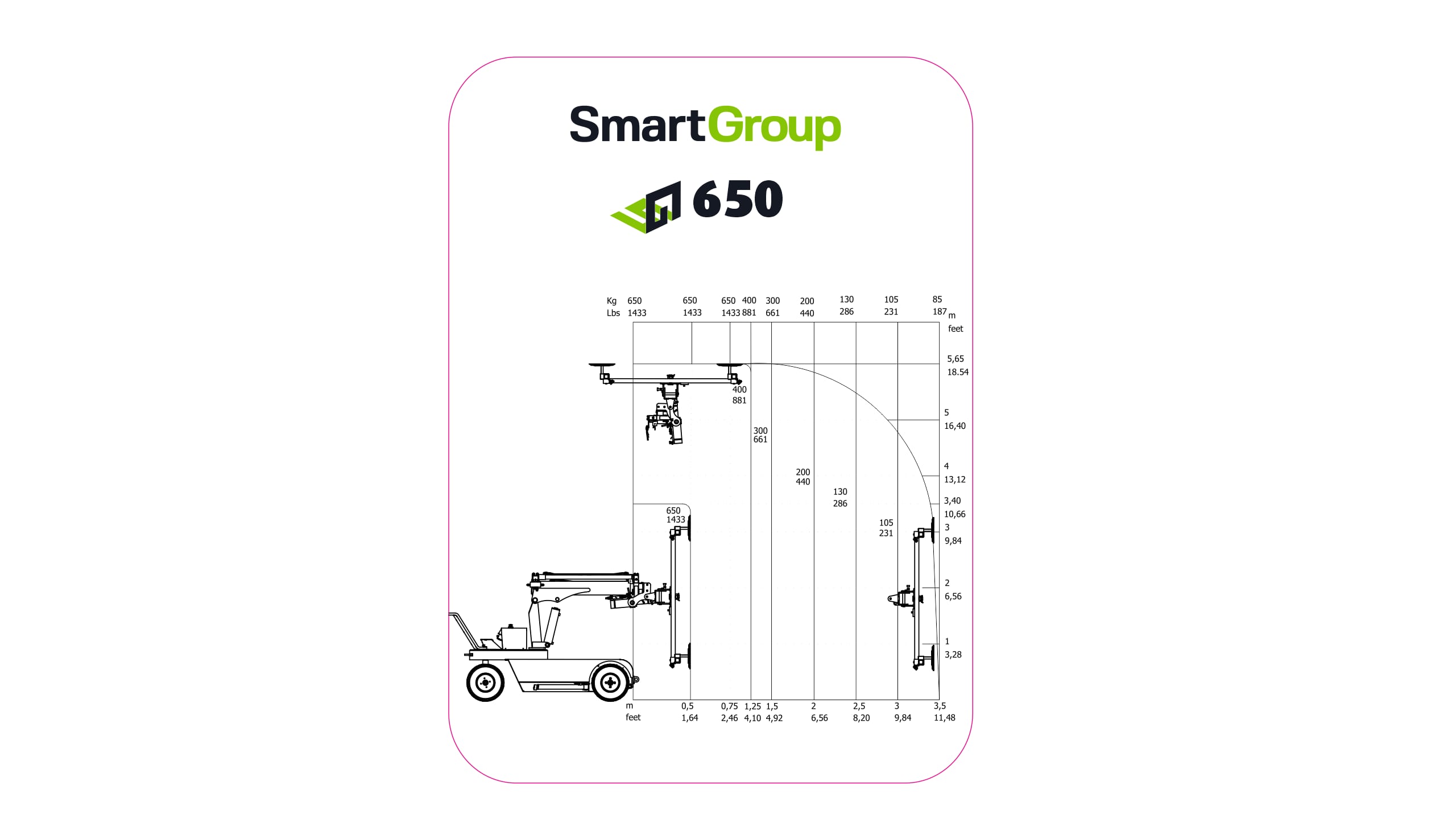

Lifting capacity
Capable of lifting and carrying objects weighing up to 650 kg in motion, making it ideal for tasks that require handling heavy materials within the glass industry or assembly work.
Safety
Når det kommer til løfteopgaver, er sikkerhed afgørende. SG650 PC leverer ikke kun imponerende ydeevne, men sætter også sikkerhed i højsædet, så du kan arbejde bekymringsfrit og effektivt.
Working height
Elevate your lifting experience to new heights with the SG650 PC, which impresses with a working height of up to 5.8 meters. Perfectly designed for lifting tasks, the SG650 PC is your key to safe and efficient work at varying heights.
Hydraulics
Each lifting session with the SG650 PC features powerful hydraulics that drive efficiency and reliability. Let's explore how the hydraulics in the SG650 PC contribute to a seamless and powerful lifting experience.
Receive offer
Get a non-binding offer and experience a new standard for efficiency and safety.
